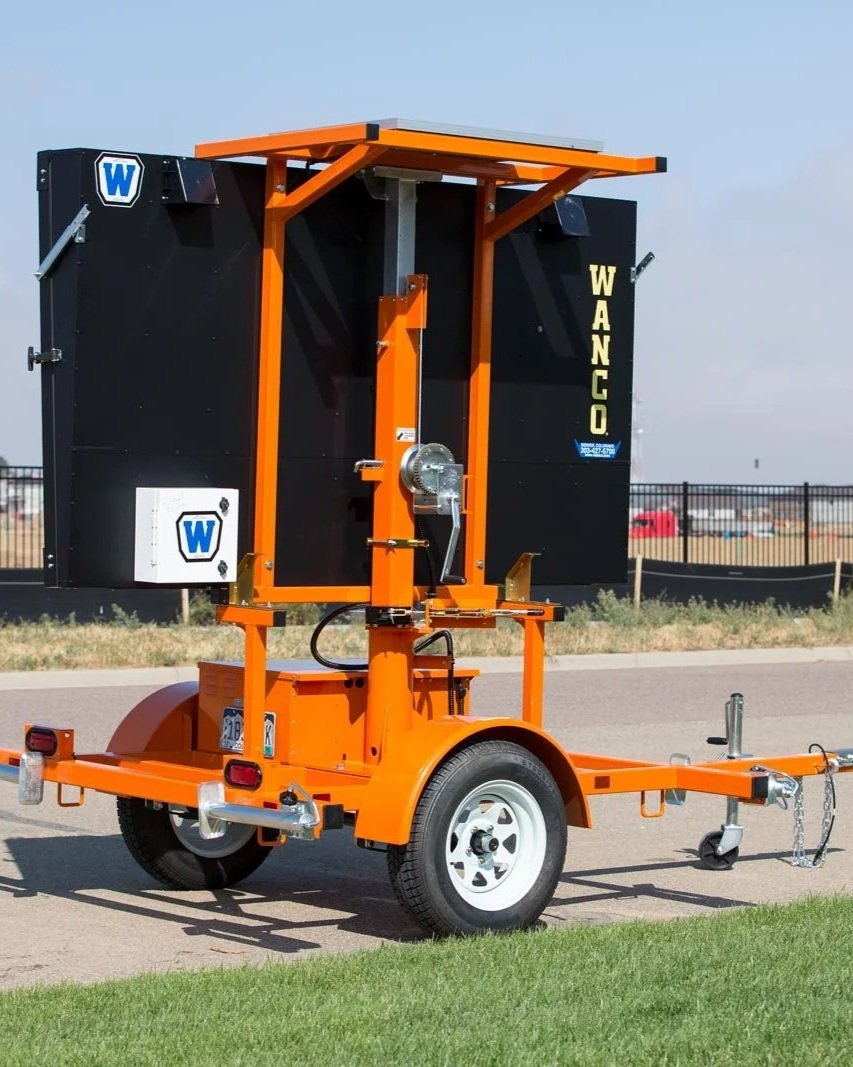

Mini Matrix Message Sign
Designed for mobility and efficiency, Wanco Mini Matrix Message Signs deliver the power of full-size variable message signs in a compact format.
Compact, Full-Matrix, and Built for High-Impact Traffic Control
The Mini Matrix Message Signs are a compact version of our full-size variable message signs. Provided by Right Traffic, they are ideal for high-impact traffic control communication.
About 30% smaller, the Mini Matrix Message Sign features a full-matrix LED display that can present messages as text, graphics, or a combination of both.
Why Choose the Mini Matrix Message Sign
Simple, intuitive programming designed for quick field use
Multiple alphanumeric fonts for clear and legible messaging
Energy-efficient operation for longer runtime and reduced power use
360-degree rotation for precise display positioning and alignment with traffic flow
Standard 2-inch ball coupler for easy towing with most vehicles
Durable powder-coated finish for long-term reliability
Lightweight design under 2,000 lb, can be towed by most vehicles
Removable drawbar for easier shipping and added security
Heavy-duty hand winch enables single-person operation
Single disc brake secures the board, while the cradle supports it in transit
Designed for Flexible, High-Impact Messaging
These traffic control signboards are designed to perform in environments where messaging must adapt in real time, with features such as
Full-Matrix Display Flexibility
Supports text, symbols, and directional graphics for more effective traffic flow management.
Optimized Display Size
96-inch by 55-inch display cabinet delivers clear, customized messaging without occupying excess space.
Easy Deployment
Deploys to a height of 84 inches, ensuring excellent visibility across a wide range of conditions.
Removable Drawbar Design
Simplifies shipping and provides added security when the unit is not in use.
Features of the Mini Matrix Message Sign
A Controller That Matches the Pace of Field Work
Mini Matrix Message Signs are built for fast deployment and simple operation, offering capabilities such as:
Onboard Touchscreen Control: A 7-inch full-color touchscreen with an 800 × 480 display provides a clear, menu-driven interface for operation.
Preprogrammed and Custom Messaging: Over 90 standard messages and storage for up to 250 custom messages in non-volatile memory.
Built-In Scheduling System: A real-time clock with calendar and DST control enables automated scheduling with up to 12 message pages.
Secure and Controlled Access: Three levels of password protection and a lockable control box prevent unauthorized use or changes.
A Display Engineered for Maximum Visibility and Flexibility
The Mini Matrix message sign delivers superior communication capabilities in all environmental conditions, with features including:
Full-Matrix LED Display: A 48 × 27 pixel matrix provides full-screen flexibility for clear and customizable message display.
Selectable Font Options: Twelve font sizes support one to four lines of text, depending on the selected format.
Automatic Brightness Adjustment: Dual photocells adjust LED intensity based on ambient light for optimal visibility.
Wide Viewing Performance: Offers a viewing angle of 44.2° to 48.8°, with visibility of up to 1 mile.
Built for Durability and Easy Maintenance
Weather-Resistant Cabinet: Aluminum cabinet with a flat-black powder-coated finish and a 5-degree downward taper to reduce glare.
Anti-Glare Display Window: Solar-grade polycarbonate with a bulb-type weather seal for a secure, weatherproof fit.
Efficient Cooling: Two top-mounted fans prevent overheating and are automatically controlled by a sensor.
Service-Friendly Trailer: Standard tires, bolt-on fenders, and quick-connect wiring make maintenance faster and easier.
Designed for demanding job site conditions, the system combines rugged construction with service-friendly features:
Reliable Power System for Long-Term Operation
The integrated power system supports continuous, low-maintenance operation across a wide range of environments:
Solar-Powered: High-efficiency panel delivers 85W output, automatically keeping batteries charged.
30-Day Battery Life: Four 6V deep-cycle batteries provide approximately 430 Ah for up to 30 days of operation without sunlight.
Backup AC Charging: A 15A AC charger keeps the system running when solar input is insufficient.
Battery Protection: A low-voltage disconnect automatically cuts power to prevent deep discharge.
Standards and Compliance for Work Zone Use
The Mini Matrix Message Sign meets key industry standards, including:
NTCIP Version 2 compliant for interoperability with traffic management systems
NEMA TS 4-2005 certified for ambient temperature, vibration, shock, electrostatic discharge, and radio interference
Designed for operation in temperatures ranging from -29°F to 165°F
CSA-compliant wiring connectors and procedures throughout
Key Applications for Traffic Management
These portable LED traffic control signs are suitable for a variety of applications, including:
Guiding lane shifts and closures in construction zones with full-matrix displays
Supporting traffic calming through radar-triggered messages
Simplifying detours and road closures using directional graphics
Delivering emergency alerts with custom graphics
Providing portable, rapid-deployment signage for events
Managing temporary traffic on narrow or multi-lane roadways
Replacing or supplementing dedicated arrow boards
Secure a Mini Matrix Message Sign for Your Next Job
Right Traffic makes it easy to access the Mini Matrix Message Sign, whether you are outfitting a municipal fleet, managing a rental program, or sourcing equipment for a specific project.
Built for compact deployment without compromising communication quality, this portable LED board delivers the visibility and control crews need on any job site. Reach out to our team for pricing, availability, and configuration options, or browse the full Wanco message sign lineup.
Frequently Asked Questions
-
A matrix message sign uses a full LED grid to display text, symbols, and graphics, while a three-line sign is limited to fixed text lines.
-
Yes. The full-matrix display supports directional arrows, symbols, and graphical elements in addition to standard text.
-
No. The sign operates on a fully integrated solar-powered system with battery storage, allowing continuous operation without external power.
-
Messages can be programmed directly on the onboard touchscreen controller using a simple, menu-driven interface. No external devices are required.
-
Yes. The unit is built with weather-resistant materials, integrated cooling systems, and protective coatings to deliver reliable performance in harsh environments.
